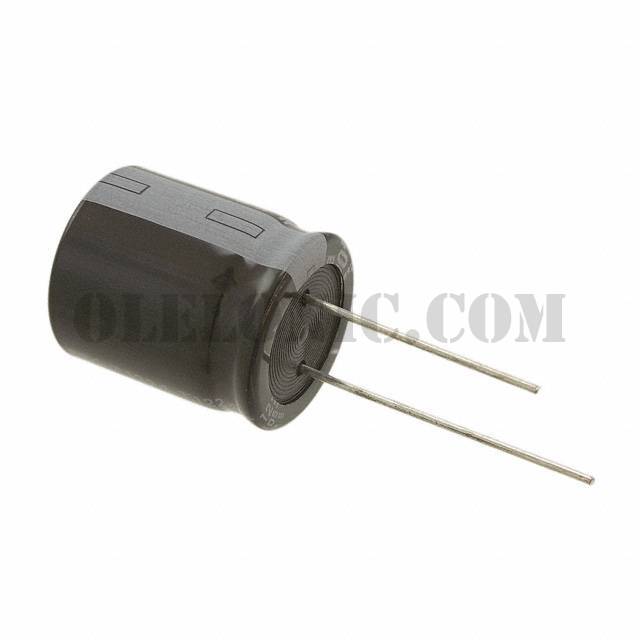

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXW Series
Standard Package	500
Manufacturer	Rubycon
Series	BXW
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	340mA @ 120Hz
Ripple Current @ High Frequency	850mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450BXW100MEFR14.5X50	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW82MEFR16X35	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW47MEFC12.5X35	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW100MEFC18X30	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW150MEFR18X35	Rubycon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW27MEFR10X35	Rubycon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW100MEFR16X45	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW82MEFC14.5X40	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW33MEFC12.5X25	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFR16X30	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW33MEFR10X40	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW100MEFR16X35	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View

450BXW22MEFR18X16

Part Number450BXW22MEFR18X16
