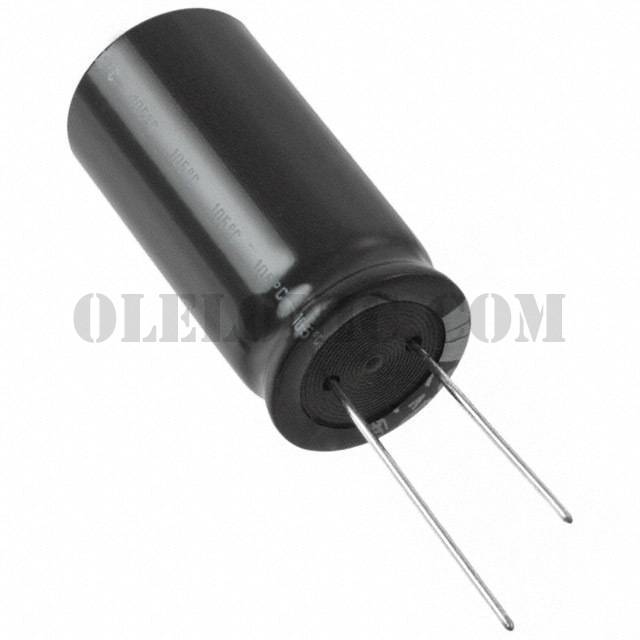

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXW Series
Standard Package	200
Manufacturer	Rubycon
Series	BXW
Packaging	Bulk
Part Status	Active
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	670mA @ 120Hz
Ripple Current @ High Frequency	1.675A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450BXW18MEFR10X25	Rubycon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW56MEFR10X45	Rubycon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW82MEFR14.5X45	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW27MEFR14.5X20	Rubycon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
400BXW18MEFR16X16	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
400BXW82MEFR18X25	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW82MEFR18X30	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW120MEFR16X45	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFC12.5X40	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW15MEFC10X20	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
450BXW27MEFR10X35	Rubycon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW39MEFR10X45	Rubycon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View

400BXW82MEFR16X30

Part Number400BXW82MEFR16X30
