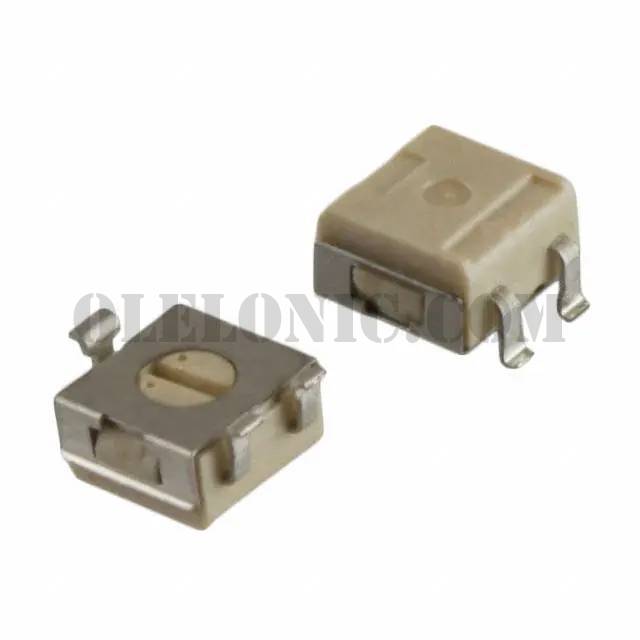

3314R-1-501E

Part Number3314R-1-501E

ManufacturerBourns Inc.

DescriptionTRIMMER 500 OHM 0.25W GW BOTTOM

Datasheet3314 Series

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description500 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1 Turn Bottom Adjustment

To learn about the specification of 3314R-1-501E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3314R-1-501E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 3314R-1-501E.
We are offering 3314R-1-501E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

3314R-1-501E - Product Attributes

Categories	Potentiometers, Variable Resistors / Trimmer Potentiometers
Datasheet	3314 Series
Standard Package	500
Manufacturer	Bourns Inc.
Series	Trimpot® 3314 - Sealed
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	500 Ohms
Power (Watts)	0.25W, 1/4W
Tolerance	±20%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Bottom Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	Gull Wing
Size / Dimension	Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Base Part Number	3314R
