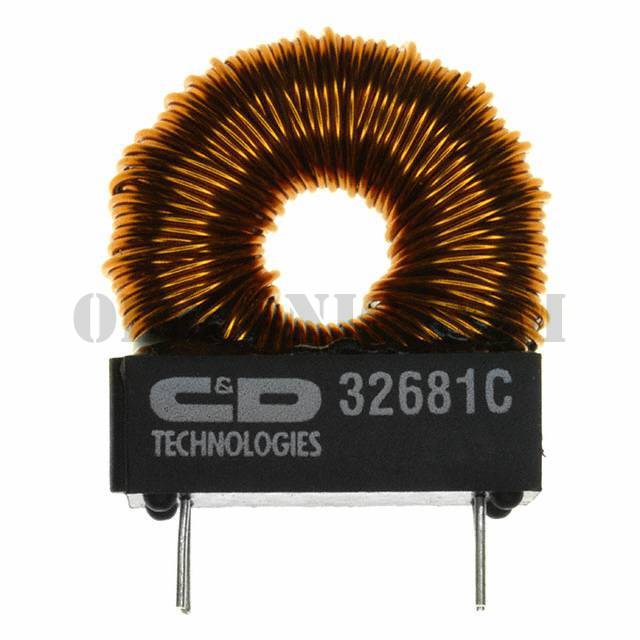

32681C

Part Number32681C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 680UH 550MA 377 MOHM

Datasheet3200 Series

Package / CaseRadial, Vertical, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680µH Unshielded Toroidal Inductor 550mA 377mOhm Max Radial, Vertical, 4 Leads (Open)

To learn about the specification of 32681C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 32681C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 32681C.
We are offering 32681C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

32681C - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

3200 Series

Standard Package

Manufacturer

Murata Power Solutions Inc.

Series

3200

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Inductance

680µH

Tolerance

±15%

Current Rating (Amps)

550mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

377mOhm Max

Q @ Freq

2 @ 800kHz

Frequency - Self Resonant

1.2MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

800kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical, 4 Leads (Open)

Supplier Device Package

Size / Dimension

0.846" L x 0.394" W (21.50mm x 10.00mm)

Height - Seated (Max)

0.945" (24.00mm)
