Categories	Capacitors / Ceramic Capacitors
Datasheet	Ceramic Cap Catalog
Standard Package	1000
Manufacturer	Johanson Dielectrics Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1000pF
Tolerance	±10%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.180" L x 0.125" W (4.57mm x 3.17mm)
Height - Seated (Max)	-
Thickness (Max)	0.110" (2.80mm)
Lead Spacing	-
Lead Style	-

102R29N470KV4E	Johanson Dielectrics Inc., 47pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
501R29W473KV4E	Johanson Dielectrics Inc., 0.047µF ±10% 500V Ceramic Capacitor X7R 1808 (4520 Metric),	View
501R15W103KV4E	Johanson Dielectrics Inc., 10000pF ±10% 500V Ceramic Capacitor X7R 0805 (2012 Metric),	View
501S43W473KV4E	Johanson Dielectrics Inc., 0.047µF ±10% 500V Ceramic Capacitor X7R 1812 (4532 Metric),	View
501S43W104KV4E	Johanson Dielectrics Inc., 0.1µF ±10% 500V Ceramic Capacitor X7R 1812 (4532 Metric),	View
302R29N331KV4E	Johanson Dielectrics Inc., 330pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
501R18N470KV4E	Johanson Dielectrics Inc., 47pF ±10% 500V Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
501R18W102KV4E	Johanson Dielectrics Inc., 1000pF ±10% 500V Ceramic Capacitor X7R 1206 (3216 Metric),	View
501R18W221KV4T	Johanson Dielectrics Inc., 220pF ±10% 500V Ceramic Capacitor X7R 1206 (3216 Metric),	View
501R18N471JV4E	Johanson Dielectrics Inc., 470pF ±5% 500V Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
102R18N220JV4E	Johanson Dielectrics Inc., 22pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
501R18W223KV4E	Johanson Dielectrics Inc., 0.022µF ±10% 500V Ceramic Capacitor X7R 1206 (3216 Metric),	View

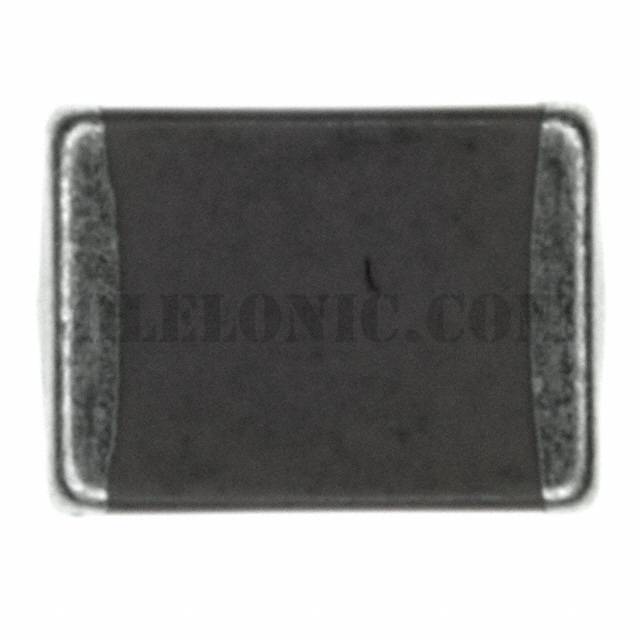

302S43W102KV4E

Part Number302S43W102KV4E
