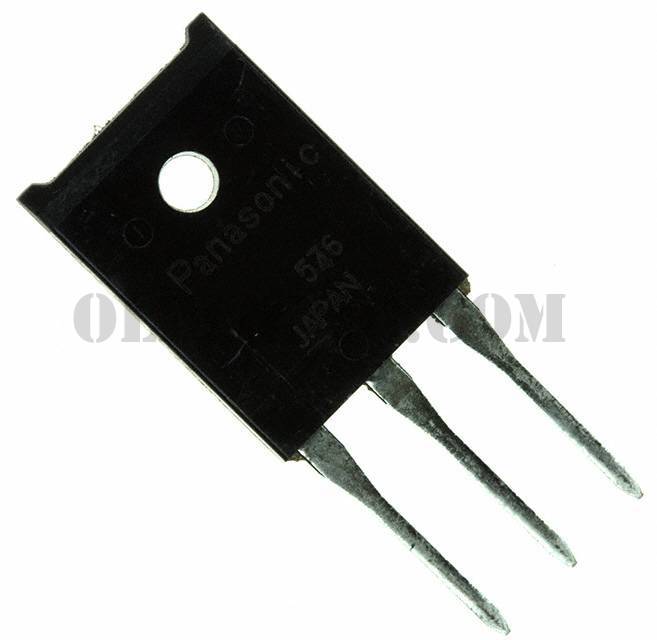

2SK3318

Part Number2SK3318

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N-CH 600V 15A TOP-3F

Datasheet2SK3318

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 15A (Tc) 3W (Ta), 100W (Tc) Through Hole TOP-3F-A1

To learn about the specification of 2SK3318, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SK3318 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SK3318.
We are offering 2SK3318 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SK3318 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

2SK3318

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

15A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

460mOhm @ 7.5A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

3500pF @ 20V

FET Feature

Power Dissipation (Max)

3W (Ta), 100W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TOP-3F-A1

Package / Case

TOP-3F
