2SK326800L

Part Number2SK326800L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N-CH 100V 15A UG-2

Datasheet2SK3268

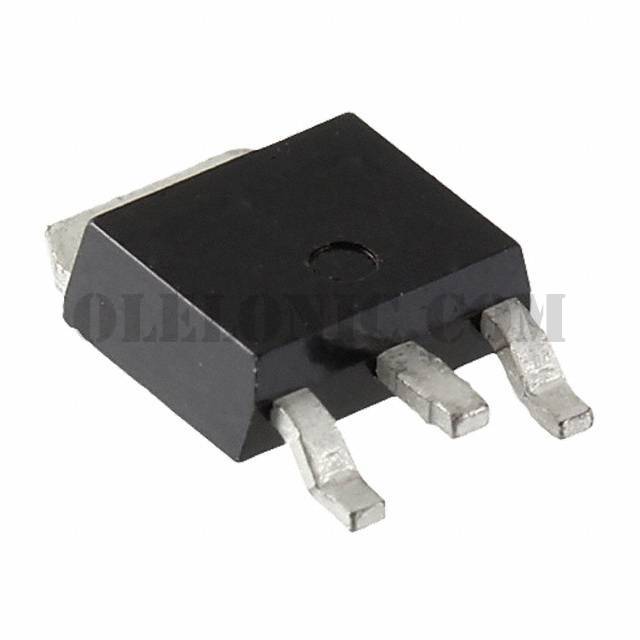

Package / CaseTO-252-4, DPak (3 Leads + Tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 15A (Tc) 1W (Ta), 20W (Tc) Surface Mount U-DL

To learn about the specification of 2SK326800L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SK326800L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SK326800L.
We are offering 2SK326800L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SK326800L - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

2SK3268

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

15A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

100mOhm @ 12A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

960pF @ 10V

FET Feature

Power Dissipation (Max)

1W (Ta), 20W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

U-DL

Package / Case

TO-252-4, DPak (3 Leads + Tab)
