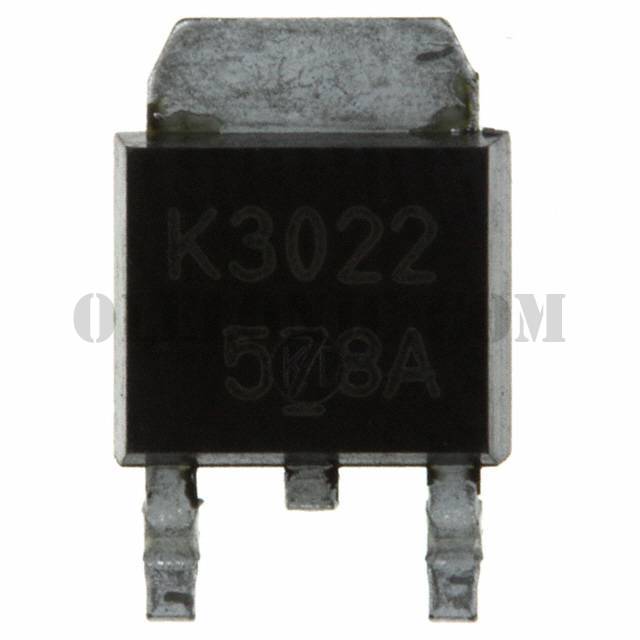

2SK302200L

Part Number2SK302200L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N-CH 60V 5A UG-2

Datasheet2SK3022

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 5A (Tc) 1W (Ta), 10W (Tc) Surface Mount U-G2

To learn about the specification of 2SK302200L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SK302200L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SK302200L.
We are offering 2SK302200L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SK302200L - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

2SK3022

Standard Package

3000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

60V

Current - Continuous Drain (Id) @ 25°C

5A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4V, 10V

Rds On (Max) @ Id, Vgs

130mOhm @ 3A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

220pF @ 10V

FET Feature

Power Dissipation (Max)

1W (Ta), 10W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

U-G2

Package / Case

TO-252-3, DPak (2 Leads + Tab), SC-63
