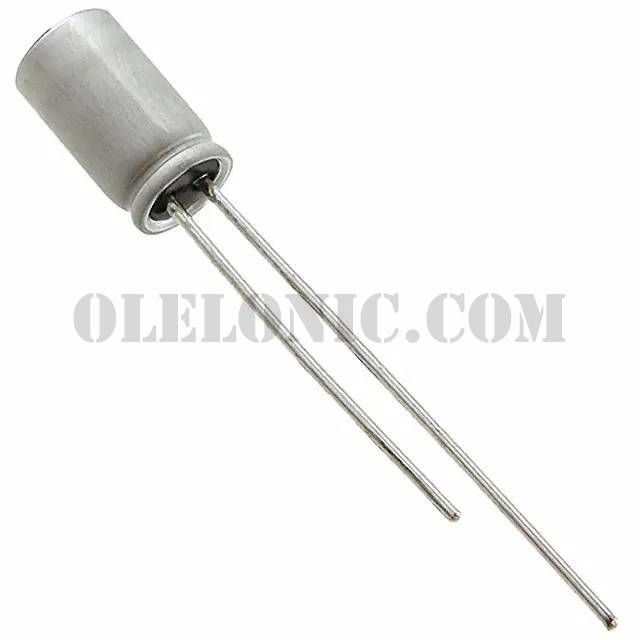

2SEPC560MZ TSS

2SEPC560MZ+TSS

Part Number2SEPC560MZ+TSS

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 560UF 20% 2.5V T/H

Datasheet2SEPC560MZ View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C

To learn about the specification of 2SEPC560MZ+TSS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SEPC560MZ+TSS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SEPC560MZ+TSS.
We are offering 2SEPC560MZ+TSS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SEPC560MZ+TSS - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	2SEPC560MZ View All Specifications
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SEPC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	2.5V
ESR (Equivalent Series Resistance)	7mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	209mA @ 120Hz
Ripple Current @ High Frequency	4.18A @ 100kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
