2SCR513P5T100

2SCR513P5T100

Part Number2SCR513P5T100

ManufacturerRohm Semiconductor

DescriptionNPN 50V 1A MEDIUM POWER TRANSIST

Datasheet2SCR513P5

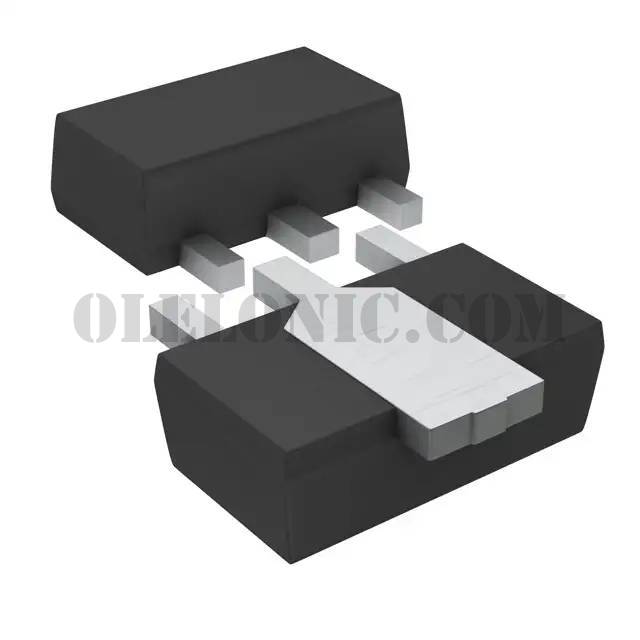

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 1A 360MHz 500mW Surface Mount MPT3

To learn about the specification of 2SCR513P5T100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SCR513P5T100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SCR513P5T100.
We are offering 2SCR513P5T100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SCR513P5T100 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SCR513P5
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	350mV @ 25mA, 500mA
Current - Collector Cutoff (Max)	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 50mA, 2V
Power - Max	500mW
Frequency - Transition	360MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	MPT3
