2SC4944-GR(TE85L,F

2SC4944-GR(TE85L,F

Part Number2SC4944-GR(TE85L,F

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS NPN 50V 0.15A USV

Datasheet2SC4944

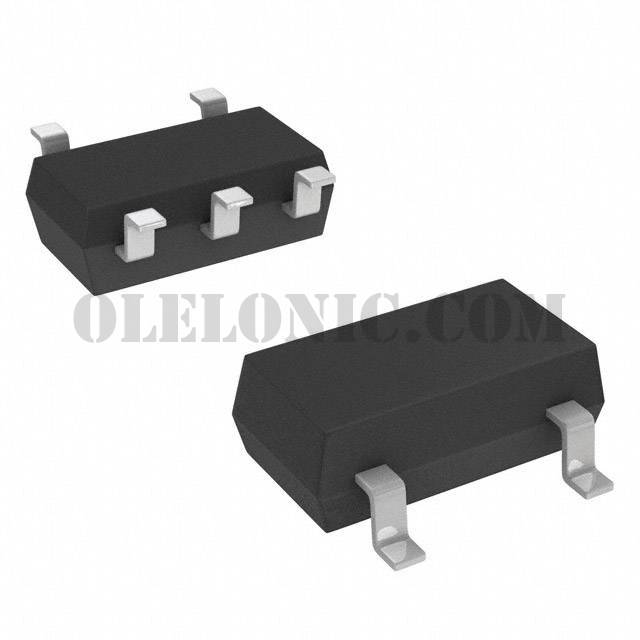

Package / Case5-TSSOP, SC-70-5, SOT-353

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 150mA 80MHz 200mW Surface Mount USV

To learn about the specification of 2SC4944-GR(TE85L,F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SC4944-GR(TE85L,F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SC4944-GR(TE85L,F.
We are offering 2SC4944-GR(TE85L,F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SC4944-GR(TE85L,F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SC4944
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	150mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 100mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2mA, 6V
Power - Max	200mW
Frequency - Transition	80MHz
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	USV
