2SB1647

2SB1647

Part Number2SB1647

ManufacturerSanken

DescriptionTRANS PNP DARL 150V 15A TO-3P

Datasheet2SB1647

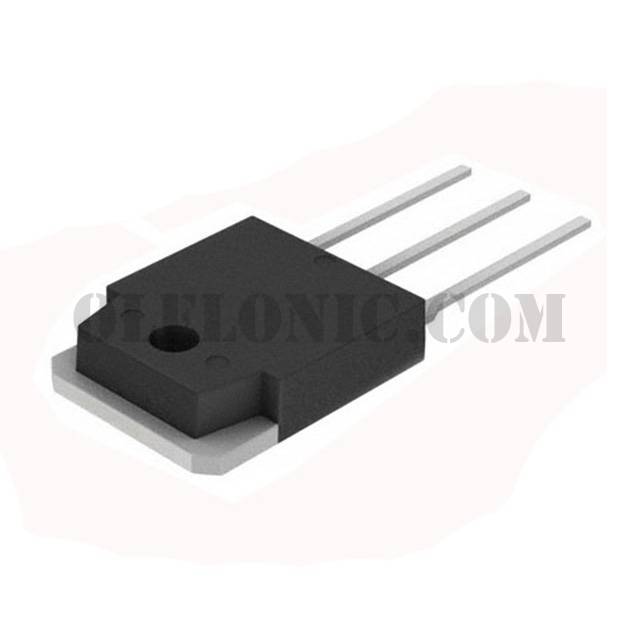

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 150V 15A 45MHz 130W Through Hole TO-3P

To learn about the specification of 2SB1647, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB1647 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB1647.
We are offering 2SB1647 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB1647 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SB1647
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	150V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 10mA, 10A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 10A, 4V
Power - Max	130W
Frequency - Transition	45MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P
