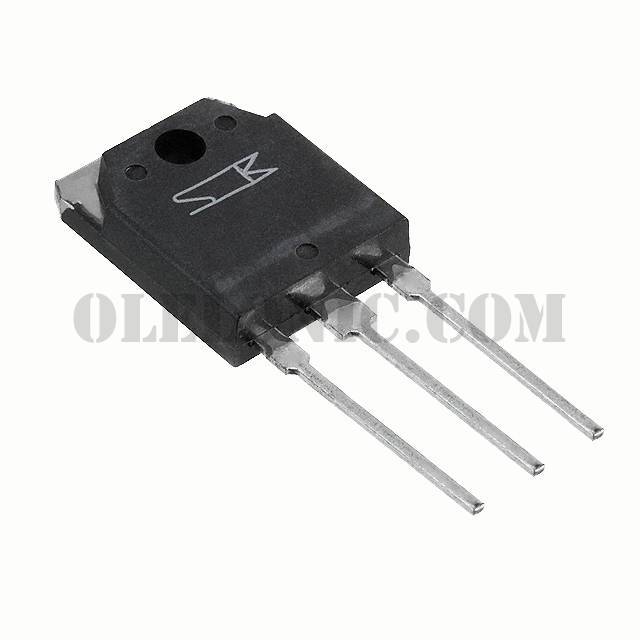

2SB1560

2SB1560

Part Number2SB1560

ManufacturerSanken

DescriptionTRANS PNP DARL 150V 10A TO-3P

Datasheet2SB1560

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 150V 10A 50MHz 100W Through Hole TO-3P

To learn about the specification of 2SB1560, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB1560 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB1560.
We are offering 2SB1560 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB1560 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SB1560
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	150V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 7mA, 7A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 7A, 4V
Power - Max	100W
Frequency - Transition	50MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P
