2SB1186AE

Part Number2SB1186AE

ManufacturerRohm Semiconductor

DescriptionTRANS PNP 160V 1.5A TO220FP

Datasheet2SB1zzz(A), 2SDzzzz(A)

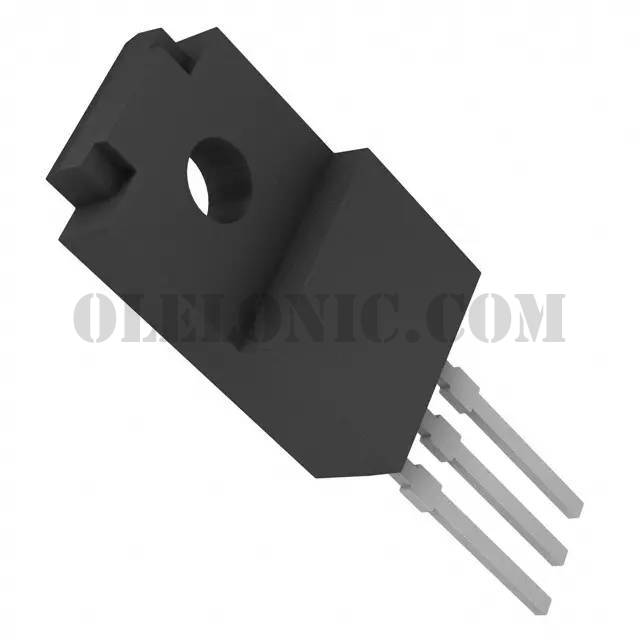

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 160V 1.5A 50MHz 2W Through Hole TO-220FP

To learn about the specification of 2SB1186AE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SB1186AE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SB1186AE.
We are offering 2SB1186AE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SB1186AE - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SB1zzz(A), 2SDzzzz(A)

Standard Package

500

Manufacturer

Rohm Semiconductor

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

PNP

Current - Collector (Ic) (Max)

1.5A

Voltage - Collector Emitter Breakdown (Max)

160V

Vce Saturation (Max) @ Ib, Ic

2V @ 100mA, 1A

Current - Collector Cutoff (Max)

1µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

60 @ 1A, 5V

Power - Max

Frequency - Transition

50MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-220-3 Full Pack

Supplier Device Package

TO-220FP
