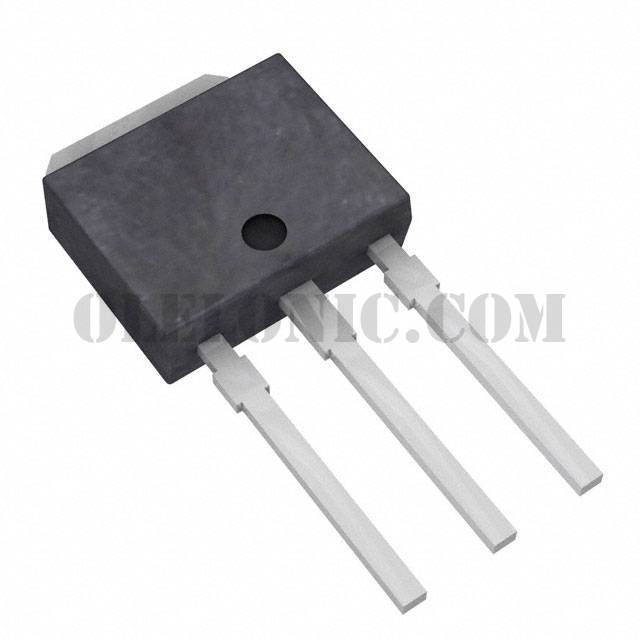

2SA2040-E

2SA2040-E

Part Number2SA2040-E

ManufacturerON Semiconductor

DescriptionTRANS PNP 50V 8A TP

Datasheet2SA2040/2SC5707

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 50V 8A 330MHz 1W Through Hole TP

To learn about the specification of 2SA2040-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA2040-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA2040-E.
We are offering 2SA2040-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA2040-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA2040/2SC5707
Standard Package	500
Manufacturer	ON Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	8A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	400mV @ 40mA, 2A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Power - Max	1W
Frequency - Transition	330MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	TP
