2SA1488

2SA1488

Part Number2SA1488

ManufacturerSanken

DescriptionTRANS PNP 80V 4A TO220F

Datasheet2SA1488/A

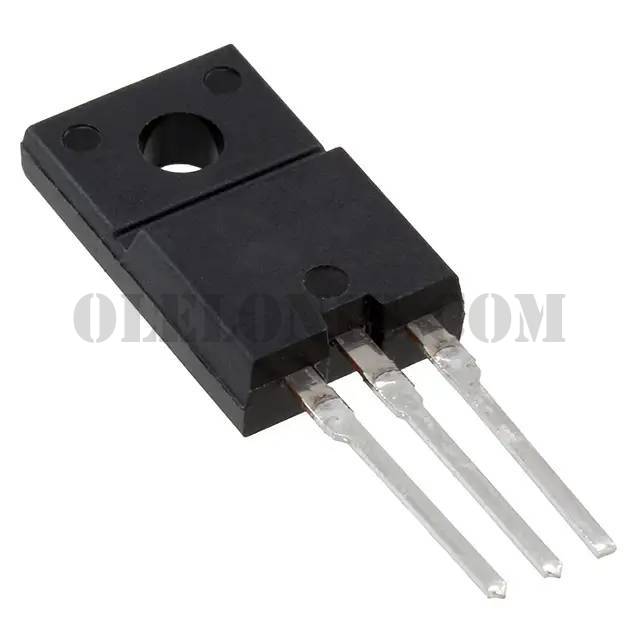

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 80V 4A 15MHz 25W Through Hole TO-220F

To learn about the specification of 2SA1488, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA1488 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA1488.
We are offering 2SA1488 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA1488 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA1488/A
Standard Package	50
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	4A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 200mA, 2A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 1A, 4V
Power - Max	25W
Frequency - Transition	15MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220F
