2SA1386
2SA1386

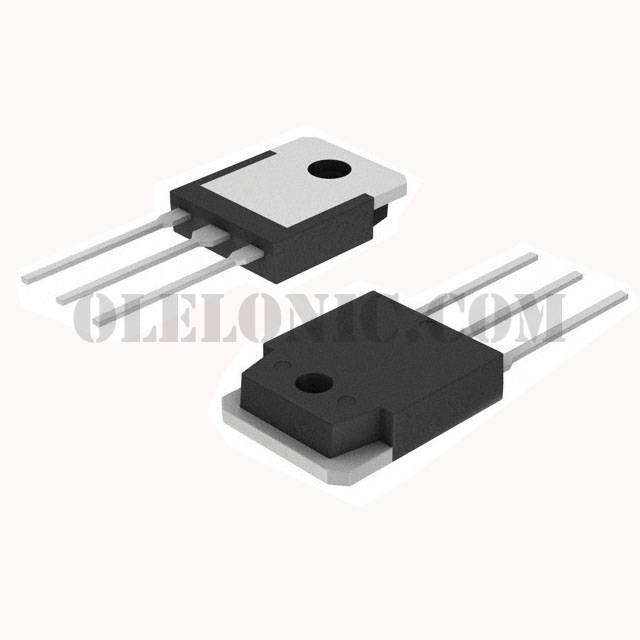

Part Number 2SA1386 Description TRANS PNP 160V 15A TO3P Package / Case TO-3P-3, SC-65-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description Bipolar (BJT) Transistor PNP 160V 15A 40MHz 130W Through Hole TO-3P
To learn about the specification of 2SA1386, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA1386 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA1386.
We are offering 2SA1386 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
2SA1386 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet 2SA1386/A Standard Package 1020 Manufacturer Sanken Series - Packaging Bulk Part Status Active Transistor Type PNP Current - Collector (Ic) (Max) 15A Voltage - Collector Emitter Breakdown (Max) 160V Vce Saturation (Max) @ Ib, Ic 2V @ 500mA, 5A Current - Collector Cutoff (Max) 100µA (ICBO) DC Current Gain (hFE) (Min) @ Ic, Vce 50 @ 5A, 4V Power - Max 130W Frequency - Transition 40MHz Operating Temperature 150°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3 Supplier Device Package TO-3P
