2SA1294

2SA1294

Part Number2SA1294

ManufacturerSanken

DescriptionTRANS PNP 230V 15A TO-3P

Datasheet2SA1294

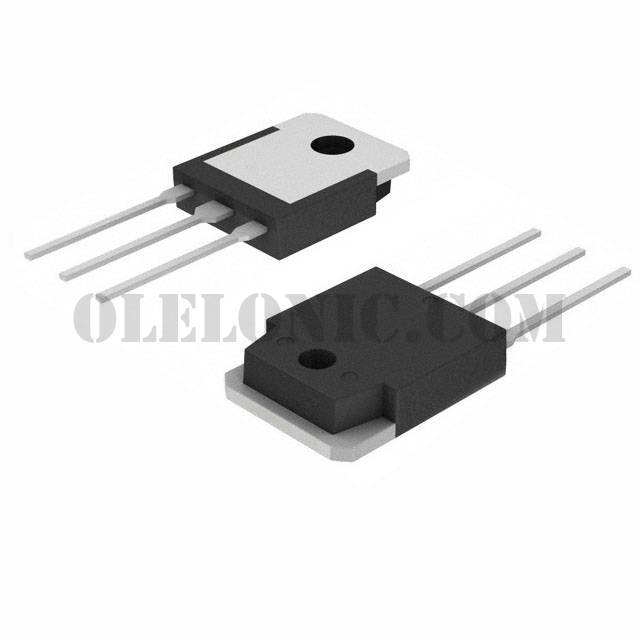

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 230V 15A 35MHz 130W Through Hole TO-3P

To learn about the specification of 2SA1294, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SA1294 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SA1294.
We are offering 2SA1294 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SA1294 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA1294
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	230V
Vce Saturation (Max) @ Ib, Ic	2V @ 500mA, 5A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 5A, 4V
Power - Max	130W
Frequency - Transition	35MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P
