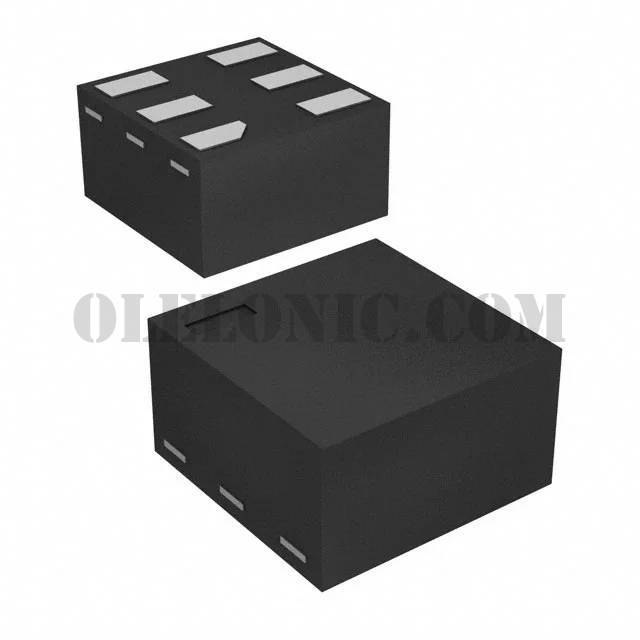

2N7002V

2N7002V

Part Number2N7002V

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 60V 0.28A SOT-563F

Datasheet2N7002V/VA Datasheet

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 280mA 250mW Surface Mount SOT-563F

To learn about the specification of 2N7002V, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N7002V with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N7002V.
We are offering 2N7002V for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N7002V - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	2N7002V/VA Datasheet
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	280mA
Rds On (Max) @ Id, Vgs	7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Power - Max	250mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563F
