2N4403-AP

2N4403-AP

Part Number2N4403-AP

ManufacturerMicro Commercial Co

DescriptionTRANS PNP 40V TO92

Datasheet2N4403

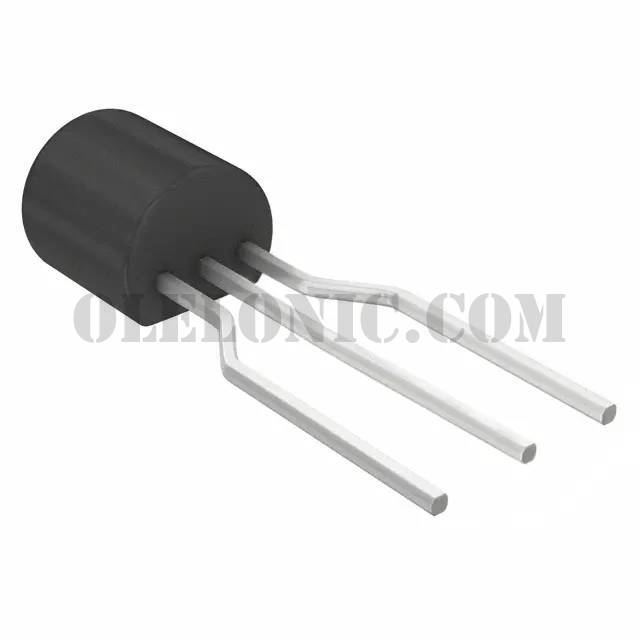

Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 40V 200MHz 600mW Through Hole TO-92

To learn about the specification of 2N4403-AP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N4403-AP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N4403-AP.
We are offering 2N4403-AP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N4403-AP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N4403
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	750mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V
Power - Max	600mW
Frequency - Transition	200MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package	TO-92
Base Part Number	2N4403
