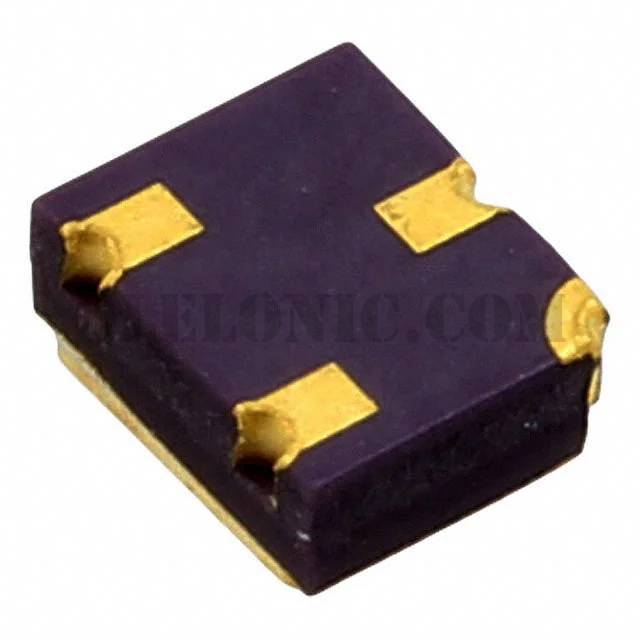

2N3501UB

Part Number2N3501UB

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 150V 0.3A

Datasheet2N3501UB

Package / Case3-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 150V 300mA 500mW Surface Mount UB

To learn about the specification of 2N3501UB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3501UB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3501UB.
We are offering 2N3501UB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N3501UB - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3501UB

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/366

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

300mA

Voltage - Collector Emitter Breakdown (Max)

150V

Vce Saturation (Max) @ Ib, Ic

400mV @ 15mA, 150mA

Current - Collector Cutoff (Max)

10µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 150mA, 10V

Power - Max

500mW

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Surface Mount

Package / Case

3-SMD, No Lead

Supplier Device Package
