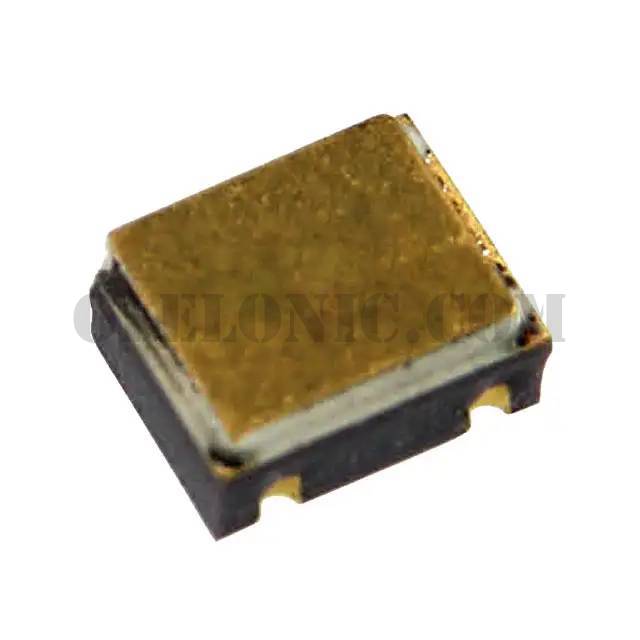

2N2222AUBTX

Part Number2N2222AUBTX

ManufacturerTT Electronics/Optek Technology

DescriptionTRANS NPN 50V 0.8A SMT

Datasheet2N2222AUB(TX,TXV) Datasheet

Package / Case4-CLCC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 800mA 300mW Surface Mount 4-CLCC (3.05x2.415)

To learn about the specification of 2N2222AUBTX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N2222AUBTX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N2222AUBTX.
We are offering 2N2222AUBTX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N2222AUBTX - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N2222AUB(TX,TXV) Datasheet

Standard Package

Manufacturer

TT Electronics/Optek Technology

Series

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

800mA

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1V @ 15mA, 500mA

Current - Collector Cutoff (Max)

10nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

75 @ 1mA, 10V

Power - Max

300mW

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Surface Mount

Package / Case

4-CLCC

Supplier Device Package

4-CLCC (3.05x2.415)
