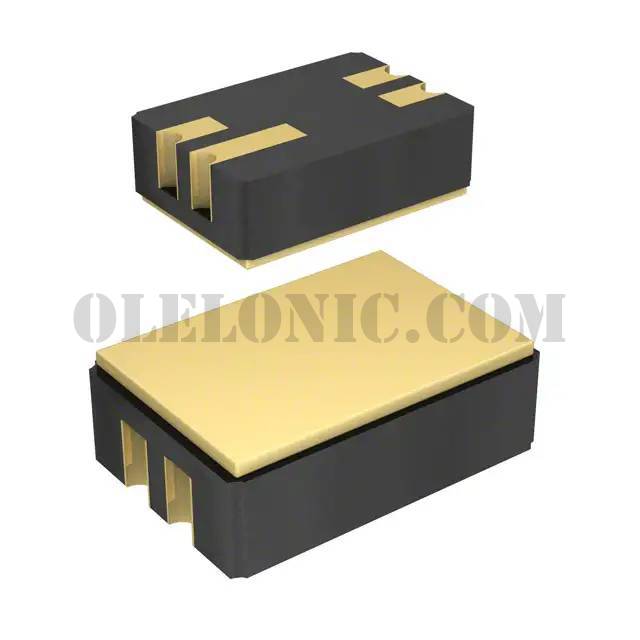

2N2222AUA

2N2222AUA

Part Number2N2222AUA

ManufacturerTT Electronics/Optek Technology

DescriptionTRANS NPN 50V 0.8A SMD

Datasheet2N2222AUA(TX,TXV) Datasheet

Package / Case4-CLCC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 800mA 500mW Surface Mount Ceramic SMD

To learn about the specification of 2N2222AUA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N2222AUA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N2222AUA.
We are offering 2N2222AUA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N2222AUA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N2222AUA(TX,TXV) Datasheet
Standard Package	1
Manufacturer	TT Electronics/Optek Technology
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	800mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce	75 @ 1mA, 10V
Power - Max	500mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-CLCC
Supplier Device Package	Ceramic SMD
