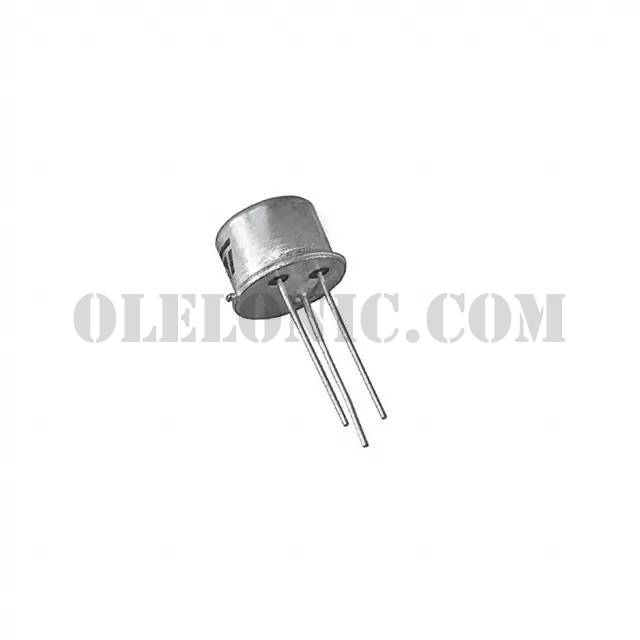

2N1613

Part Number2N1613

ManufacturerSTMicroelectronics

DescriptionTRANS NPN 50V 0.5A TO-39

Datasheet2N1613, 2N1711

Package / CaseTO-205AD, TO-39-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 500mA 80MHz 800mW Through Hole TO-39

To learn about the specification of 2N1613, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N1613 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N1613.
We are offering 2N1613 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N1613 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N1613, 2N1711

Standard Package

500

Manufacturer

STMicroelectronics

Series

Packaging

Tube

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

500mA

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 15mA, 150mA

Current - Collector Cutoff (Max)

10nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

40 @ 150mA, 10V

Power - Max

800mW

Frequency - Transition

80MHz

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-205AD, TO-39-3 Metal Can

Supplier Device Package

TO-39

Base Part Number

2N1613
