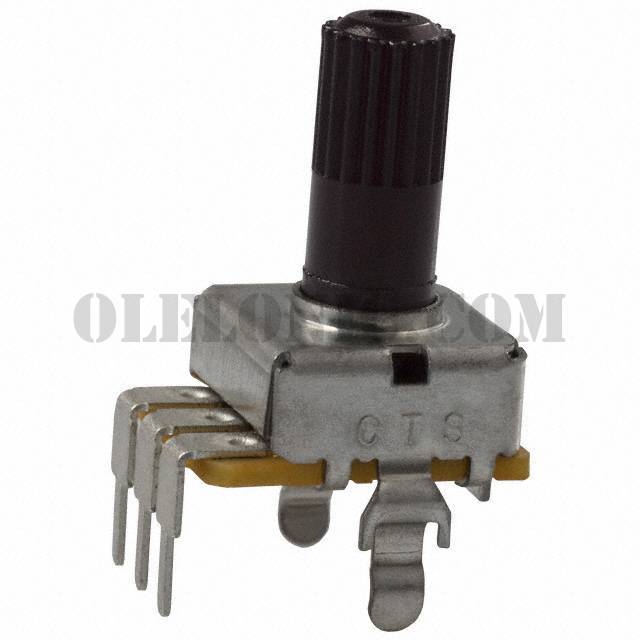

296UD105B1N

Part Number296UD105B1N

ManufacturerCTS Electrocomponents

DescriptionPOT 1M OHM 0.15W CARBON LINEAR

Datasheet296 Series Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1M Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.15W PC Pins, Board Locks

To learn about the specification of 296UD105B1N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 296UD105B1N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 296UD105B1N.
We are offering 296UD105B1N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

296UD105B1N - Product Attributes

Categories

Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats

Datasheet

296 Series Datasheet

Standard Package

Manufacturer

CTS Electrocomponents

Series

296

Packaging

Bulk

Part Status

Obsolete

Resistance (Ohms)

Tolerance

±20%

Power (Watts)

0.15W

Built in Switch

None

Number of Turns

Taper

Linear

Number of Gangs

Adjustment Type

Top Adjustment

Temperature Coefficient

Rotation

300°

Resistive Material

Carbon

Termination Style

PC Pins, Board Locks

Actuator Type

Knurled

Actuator Length

0.539" (13.70mm)

Actuator Diameter

0.236" (6.00mm)

Bushing Thread

Mounting Type

Through Hole, Snap In

Size - Body

Square - 0.504" x 0.492" Face x 0.343" H (12.80mm x 12.50mm x 8.70mm)
