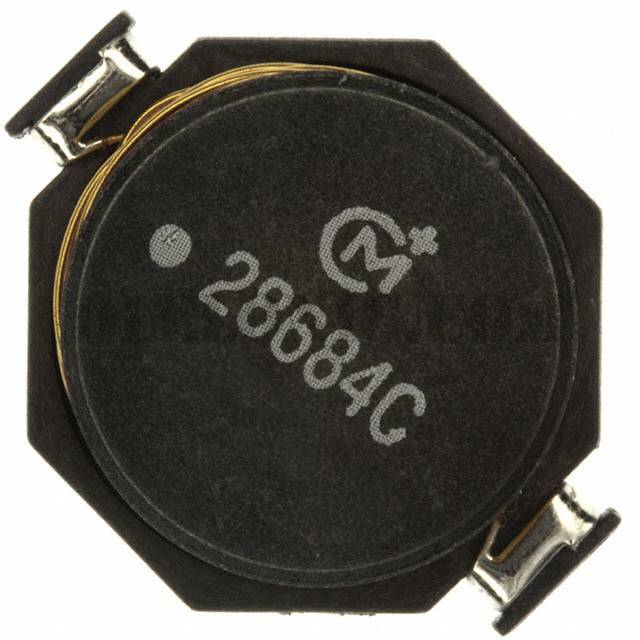

28684C

Part Number28684C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 680UH 640MA 1.17 OHM

Datasheet2800 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680µH Unshielded Wirewound Inductor 640mA 1.17Ohm Max Nonstandard

To learn about the specification of 28684C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 28684C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 28684C.
We are offering 28684C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

28684C - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

2800 Series

Standard Package

350

Manufacturer

Murata Power Solutions Inc.

Series

2800

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

680µH

Tolerance

Current Rating (Amps)

640mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

1.17Ohm Max

Q @ Freq

20.4 @ 800kHz

Frequency - Self Resonant

4.2MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

800kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.728" L x 0.598" W (18.50mm x 15.20mm)

Height - Seated (Max)

0.299" (7.60mm)
