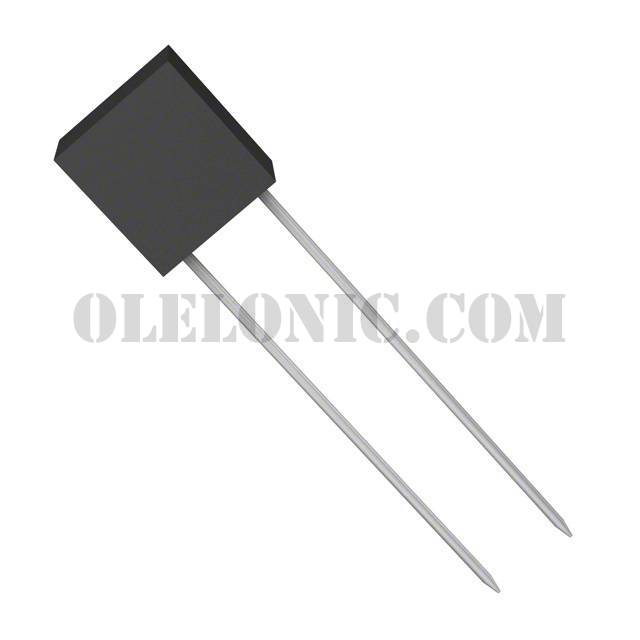

2727-14F

Part Number2727-14F

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 120UH 125MA 12 OHM TH

Datasheet2727(R) Series

Package / CaseRadial, Vertical

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120µH Unshielded Toroidal Inductor 125mA 12Ohm Max Radial, Vertical

To learn about the specification of 2727-14F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2727-14F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2727-14F.
We are offering 2727-14F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2727-14F - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

2727(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

2727

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron

Inductance

120µH

Tolerance

±1%

Current Rating (Amps)

125mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

12Ohm Max

Q @ Freq

45 @ 790kHz

Frequency - Self Resonant

8.2MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

790kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical

Supplier Device Package

Size / Dimension

0.280" L x 0.160" W (7.11mm x 4.06mm)

Height - Seated (Max)

0.300" (7.62mm)
