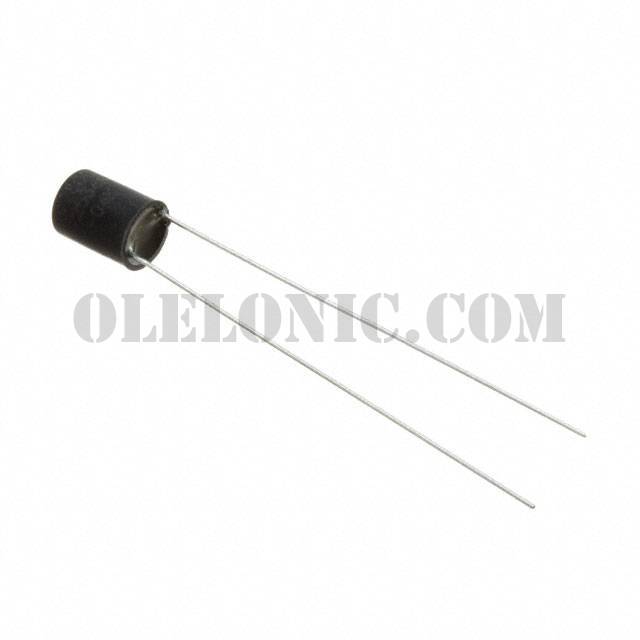

2534R-04K

Part Number2534R-04K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 150UH 285MA 2 OHM TH

Datasheet2534(R) Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µH Unshielded Molded Inductor 285mA 2Ohm Max Radial, Vertical Cylinder

To learn about the specification of 2534R-04K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2534R-04K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2534R-04K.
We are offering 2534R-04K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2534R-04K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

2534(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

2534R

Packaging

Bulk

Part Status

Active

Type

Molded

Material - Core

Ferrite

Inductance

150µH

Tolerance

±10%

Current Rating (Amps)

285mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

2Ohm Max

Q @ Freq

90 @ 790kHz

Frequency - Self Resonant

3.2MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

790kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder

Supplier Device Package

Size / Dimension

0.250" Dia (6.35mm)

Height - Seated (Max)

0.345" (8.76mm)
