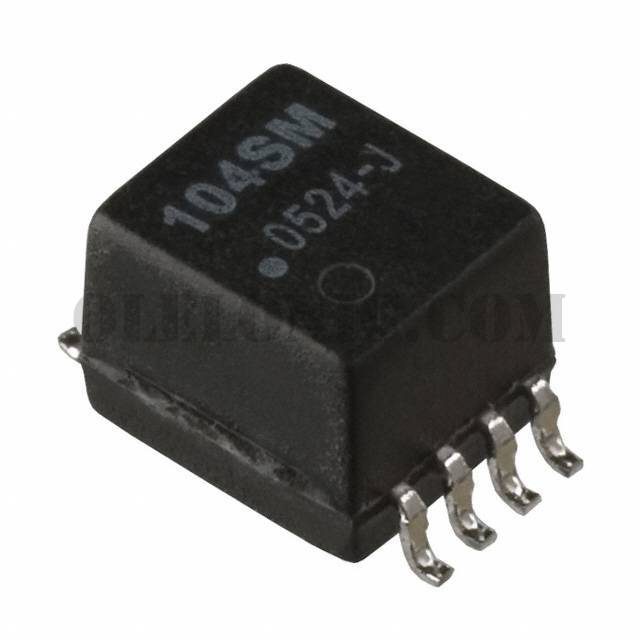

23Z104SM

Part Number23Z104SM

ManufacturerPulse Electronics Network

DescriptionCOMMON MODE CHOKE 4LN SMD

DatasheetCommon Mode Chokes Catalog

Package / Case8-SOIC (0.265", 6.73mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4 Line Common Mode Choke Surface Mount DCR 200mOhm

To learn about the specification of 23Z104SM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 23Z104SM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 23Z104SM.
We are offering 23Z104SM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

23Z104SM - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

Common Mode Chokes Catalog

Standard Package

Manufacturer

Pulse Electronics Network

Series

Packaging

Bulk

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Current Rating (Max)

DC Resistance (DCR) (Max)

200mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.230" L x 0.265" W (5.84mm x 6.73mm)

Height (Max)

0.220" (5.59mm)

Package / Case

8-SOIC (0.265", 6.73mm Width)
