Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2300 Series
Standard Package	1
Manufacturer	Murata Power Solutions Inc.
Series	2300
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	10µH
Tolerance	-
Current Rating (Amps)	1.18A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	87mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.244" L x 0.220" W (6.20mm x 5.60mm)
Height - Seated (Max)	0.126" (3.20mm)

2302-V-RC	Bourns Inc., 12µH Unshielded Toroidal Inductor 19.1A 5mOhm Max Radial, Vertical (Open), 2300	View
23S4R7C	Murata Power Solutions Inc., 4.7µH Shielded Wirewound Inductor 1.6A 44mOhm Max Nonstandard, 2300	View
234R7C	Murata Power Solutions Inc., 4.7µH Unshielded Wirewound Inductor 1.48A 68mOhm Max Nonstandard, 2300	View
234R7C	Murata Power Solutions Inc., 4.7µH Unshielded Wirewound Inductor 1.48A 68mOhm Max Nonstandard, 2300	View
2305-H-RC	Bourns Inc., 22µH Unshielded Toroidal Inductor 16.4A 7mOhm Max Radial, Horizontal (Open), 2300	View
2322-V-RC	Bourns Inc., 680µH Unshielded Toroidal Inductor 3.4A 150mOhm Max Radial, Vertical (Open), 2300	View
2309-H-RC	Bourns Inc., 47µH Unshielded Toroidal Inductor 10.7A 16mOhm Max Radial, Horizontal (Open), 2300	View
2318-H-RC	Bourns Inc., 330µH Unshielded Toroidal Inductor 5.2A 67mOhm Max Radial, Horizontal (Open), 2300	View
2316-H-RC	Bourns Inc., 220µH Unshielded Toroidal Inductor 5.8A 54mOhm Max Radial, Horizontal (Open), 2300	View
2313-H-RC	Bourns Inc., 120µH Unshielded Toroidal Inductor 6.7A 40mOhm Max Radial, Horizontal (Open), 2300	View
2316-V-RC	Bourns Inc., 220µH Unshielded Toroidal Inductor 5.8A 54mOhm Max Radial, Vertical (Open), 2300	View
2301-H-RC	Bourns Inc., 10µH Unshielded Toroidal Inductor 20A 5mOhm Max Radial, Horizontal (Open), 2300	View

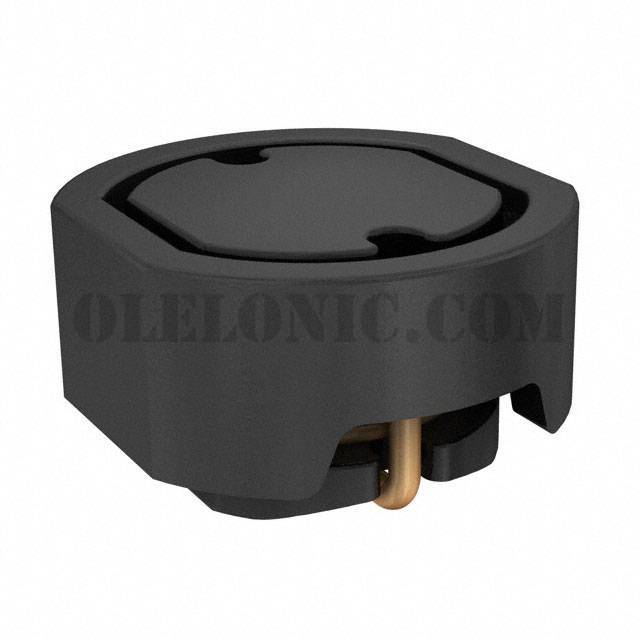

23S100C

Part Number23S100C
