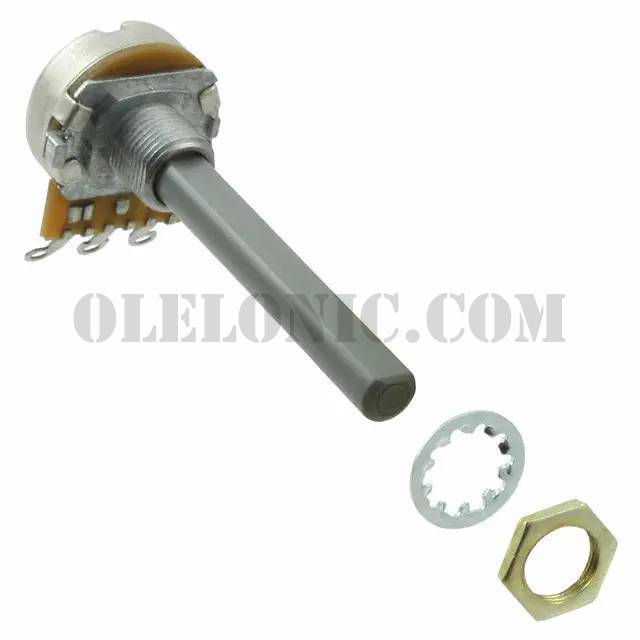

23ESA223MMF50N

Part Number23ESA223MMF50N

ManufacturerTE Connectivity Passive Product

DescriptionPOT 22K OHM 0.4W CARBON LINEAR

Datasheet1624130 Drawing

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Carbon 0.4W Solder Lug

To learn about the specification of 23ESA223MMF50N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 23ESA223MMF50N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 23ESA223MMF50N.
We are offering 23ESA223MMF50N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

23ESA223MMF50N - Product Attributes

Categories	Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Datasheet	1624130 Drawing
Standard Package	200
Manufacturer	TE Connectivity Passive Product
Series	23, Citec
Packaging	Bulk
Part Status	Active
Resistance (Ohms)	22k
Tolerance	±20%
Power (Watts)	0.4W
Built in Switch	None
Number of Turns	1
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	5%
Rotation	300°
Resistive Material	Carbon
Termination Style	Solder Lug
Actuator Type	Flatted
Actuator Length	1.969" (50.00mm)
Actuator Diameter	0.250" (6.35mm)
Bushing Thread	3/8
Mounting Type	Panel Mount
Size - Body	Rectangular - 0.992" x 0.717" Face x 0.421" H (25.20mm x 18.20mm x 10.70mm)
