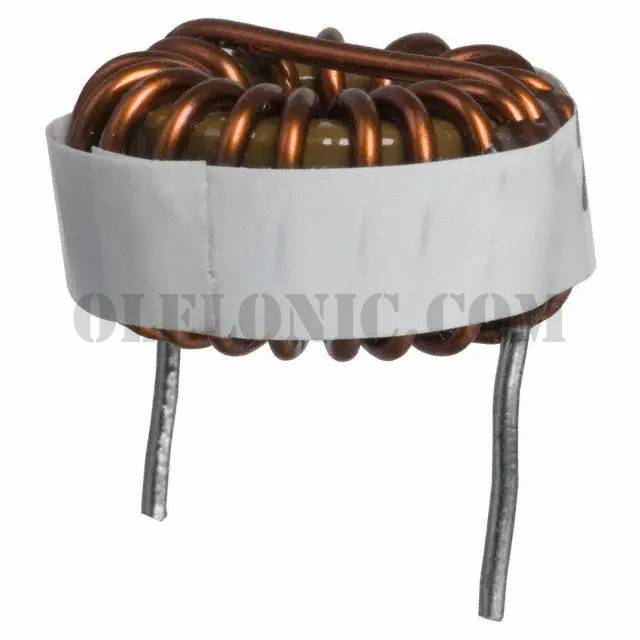

2301-H-RC

2301-H-RC

Part Number2301-H-RC

ManufacturerBourns Inc.

DescriptionFIXED IND 10UH 20A 5 MOHM TH

Datasheet2300 Series

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Toroidal Inductor 20A 5mOhm Max Radial, Horizontal (Open)

To learn about the specification of 2301-H-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2301-H-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2301-H-RC.
We are offering 2301-H-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2301-H-RC - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2300 Series
Standard Package	36
Manufacturer	Bourns Inc.
Series	2300
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	10µH
Tolerance	±15%
Current Rating (Amps)	20A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	5mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal (Open)
Supplier Device Package	-
Size / Dimension	1.280" Dia (32.51mm)
Height - Seated (Max)	0.650" (16.51mm)
Base Part Number	2300
