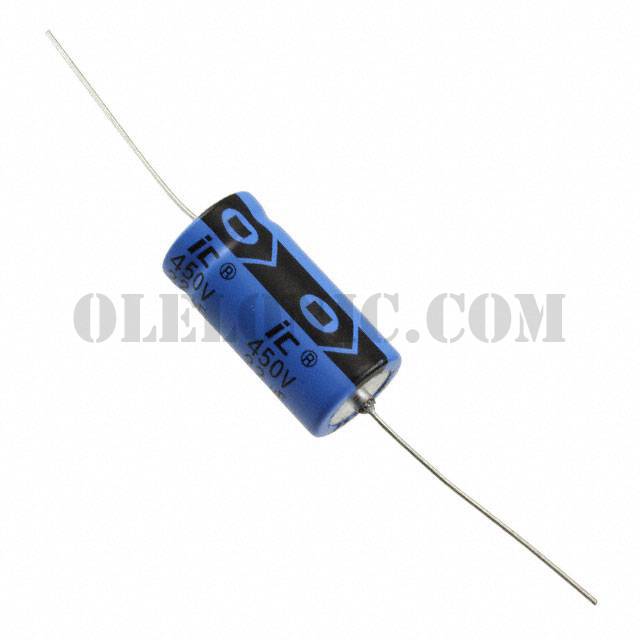

226TTA100M

226TTA100M

Part Number226TTA100M

ManufacturerIllinois Capacitor

DescriptionAXIAL E-CAP

DatasheetTTA Series Datasheet

Package / CaseAxial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 100V Aluminum Electrolytic Capacitors Axial, Can 15.072Ohm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of 226TTA100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 226TTA100M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 226TTA100M.
We are offering 226TTA100M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

226TTA100M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TTA Series Datasheet
Standard Package	200
Manufacturer	Illinois Capacitor
Series	TTA
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	15.072Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	183.6mA @ 50kHz
Lead Spacing	-
Size / Dimension	0.315" Dia x 0.630" L (8.00mm x 16.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can
