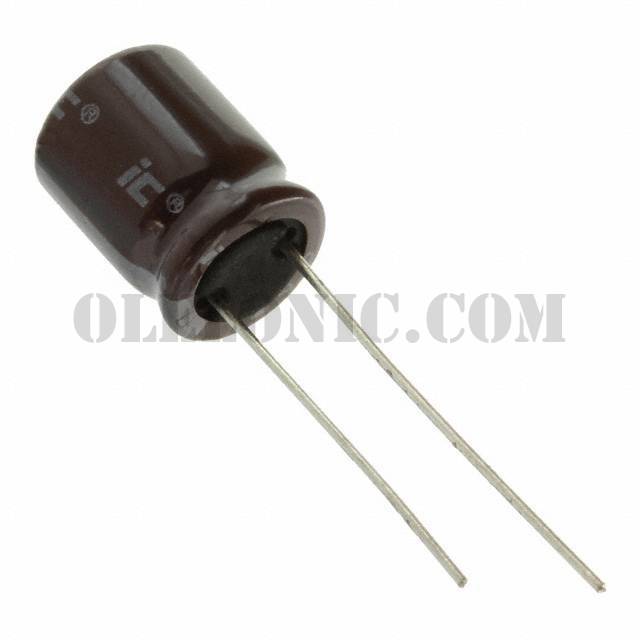

226CKH050M

Part Number226CKH050M

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 22UF 20% 50V THRU HOLE

DatasheetCKH/CKE Series Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 50V Aluminum Electrolytic Capacitors Radial, Can 7.536Ohm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of 226CKH050M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 226CKH050M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 226CKH050M.
We are offering 226CKH050M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

226CKH050M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CKH/CKE Series Datasheet
Standard Package	1000
Manufacturer	Illinois Capacitor
Series	CKH
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	7.536Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	80mA @ 120Hz
Ripple Current @ High Frequency	184mA @ 100kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
