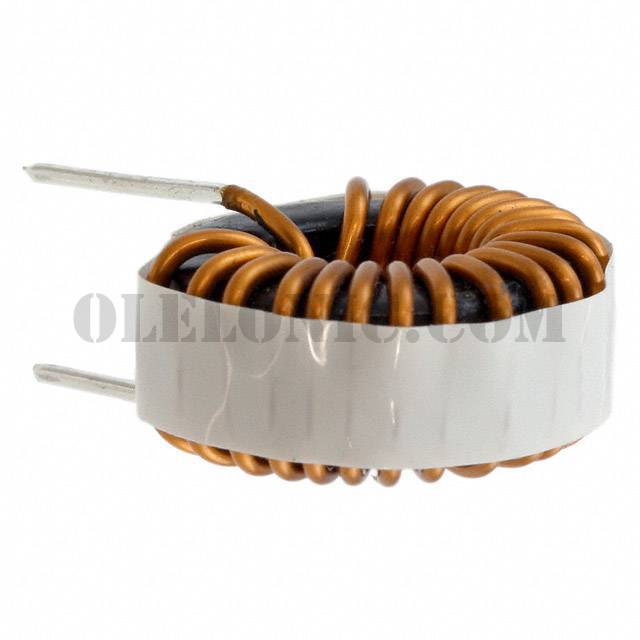

2200LL-470-V-RC


2200LL-470-V-RC

Part Number2200LL-470-V-RC

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2200LL-470-V-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package120
ManufacturerBourns Inc.
Series2200LL
PackagingBulk
Part StatusActive
TypeToroidal
Material - CoreSendust
Inductance47µH
Tolerance±15%
Current Rating (Amps)10.3A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)12mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension1.100" Dia x 0.550" W (27.94mm x 13.97mm)
Height - Seated (Max)-
Base Part Number2200LL
