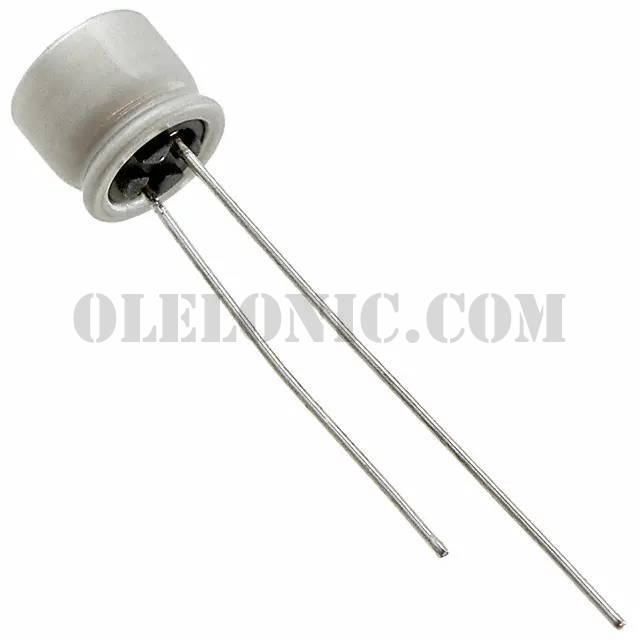

20SEP22M

Part Number20SEP22M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 22UF 20% 20V T/H

Datasheet20SEP22M View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 20V Aluminum Polymer Capacitor Radial, Can 60mOhm 3000 Hrs @ 105°C

To learn about the specification of 20SEP22M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 20SEP22M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 20SEP22M.
We are offering 20SEP22M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

20SEP22M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	20SEP22M View All Specifications
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SEP
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	60mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	72.5mA @ 120Hz
Ripple Current @ High Frequency	1.45A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
