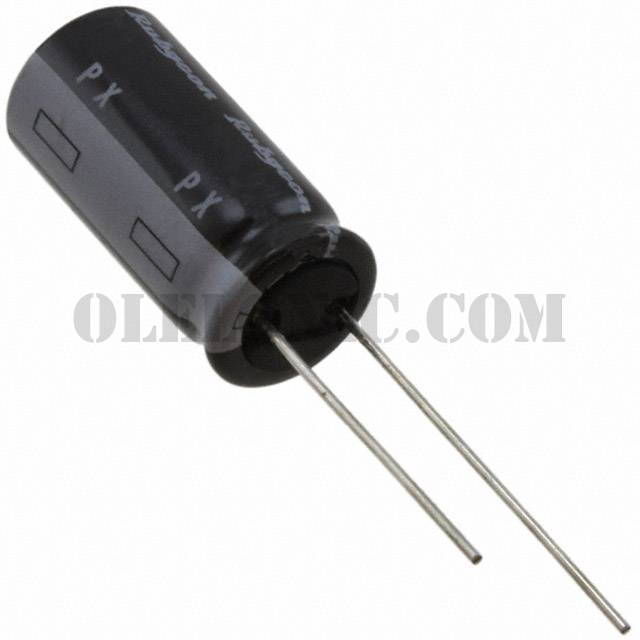

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PX Series
Standard Package	500
Manufacturer	Rubycon
Series	PX
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	105mA @ 120Hz
Ripple Current @ High Frequency	157.5mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

350PX22MEFCG412.5X20	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
400PX4R7MEFC8X11.5	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View
35PX100MEFC6.3X11	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View
63PX1000MEFC16X25	Rubycon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
100PX680MEFC16X31.5	Rubycon, 680µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
400PX4R7MEFCTA8X11.5	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View
50PX100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View
350PX2R2MEFC6.3X11	Rubycon, 2.2µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View
16PX10000MEFC16X31.5	Rubycon, 10000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
160PX47MEFCT810X20	Rubycon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
100PX220MEFC12.5X20	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, PX	View
16PX100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, PX	View

200PX22MEFCT810X16

Part Number200PX22MEFCT810X16
