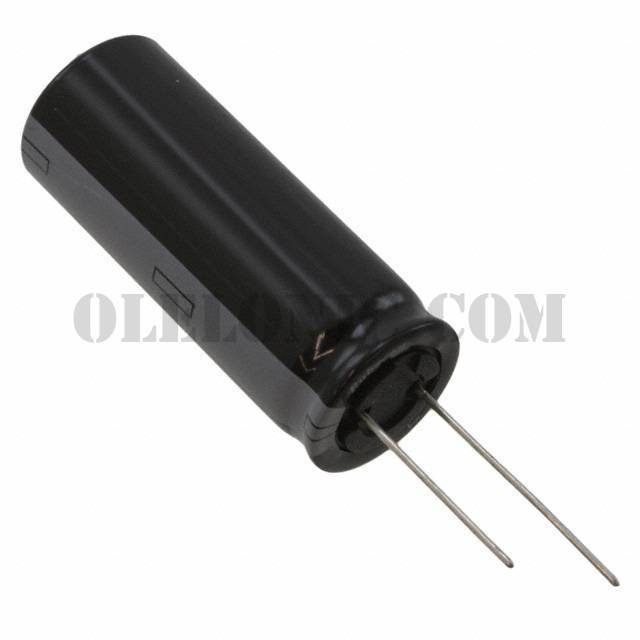

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KXW Series Datasheet
Standard Package	200
Manufacturer	Rubycon
Series	KXW
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.39A @ 120Hz
Ripple Current @ High Frequency	1.946A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400KXW150MEFC18X35	Rubycon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
450KXW150MEFC18X45	Rubycon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
400KXW47MEFC12.5X30	Rubycon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
400KXW100MEFC16X30	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
200KXW270MEFC16X30	Rubycon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
200KXW82MEFC10X30	Rubycon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
450KXW100MEFC18X35	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
420KXW120MEFC18X30	Rubycon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
200KXW100MEFC10X35	Rubycon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
200KXW560MEFC18X45	Rubycon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
400KXW120MEFC18X30	Rubycon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View
200KXW390MEFC18X35	Rubycon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KXW	View

200KXW560MEFC18X45

Part Number200KXW560MEFC18X45
