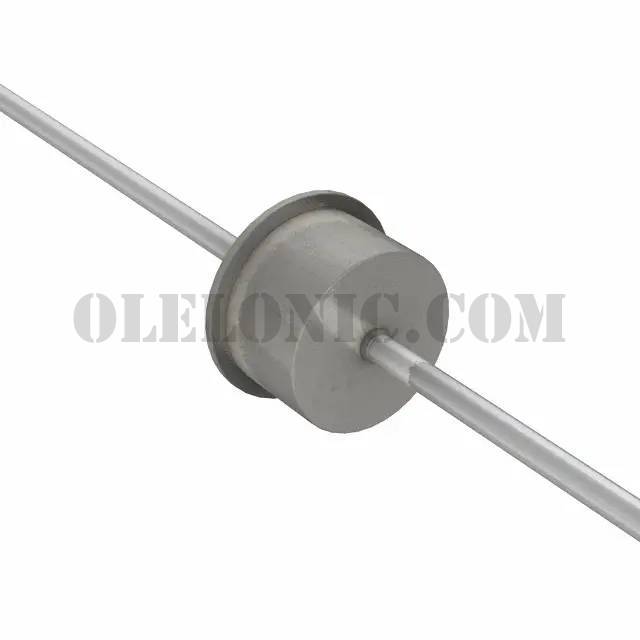

1N5824

Part Number1N5824

ManufacturerMicrosemi Corporation

DescriptionDIODE SCHOTTKY 5A 30V TOPHAT

Datasheet1N5823-25

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 5A Through Hole Axial

To learn about the specification of 1N5824, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5824 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5824.
We are offering 1N5824 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5824 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5823-25

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

370mV @ 5A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

10mA @ 30V

Capacitance @ Vr, F

Mounting Type

Through Hole

Package / Case

Axial

Supplier Device Package
