Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5802, 04US, 06US and URS
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	875mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	1µA @ 100V
Capacitance @ Vr, F	25pF @ 10V, 1MHz
Mounting Type	Surface Mount

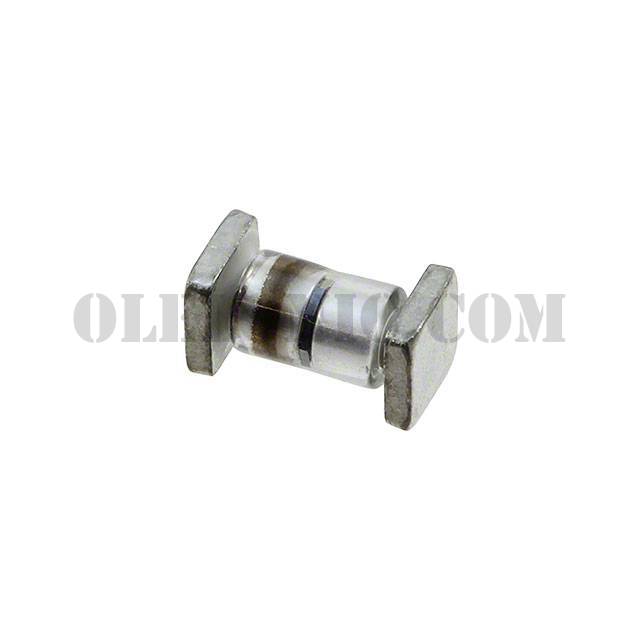

Package / Case	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 175°C
