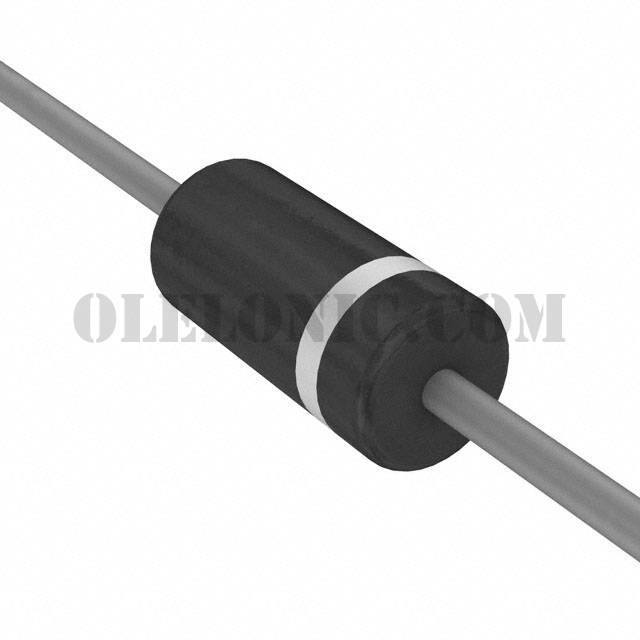

1N5615GP-E3/54

1N5615GP-E3/54

Part Number1N5615GP-E3/54

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 200V 1A DO204AC

Datasheet1N561xGP, 1N562xGP

Package / CaseDO-204AC, DO-15, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Through Hole DO-204AC (DO-15)

To learn about the specification of 1N5615GP-E3/54, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5615GP-E3/54 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5615GP-E3/54.
We are offering 1N5615GP-E3/54 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5615GP-E3/54 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N561xGP, 1N562xGP
Standard Package	4000
Manufacturer	Vishay Semiconductor Diodes Division
Series	SUPERECTIFIER®
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	500nA @ 200V
Capacitance @ Vr, F	25pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	1N5615
