Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N55xx
Standard Package	500
Manufacturer	Semtech Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	1µA @ 1000V
Capacitance @ Vr, F	92pF @ 5V, 1MHz
Mounting Type	Through Hole

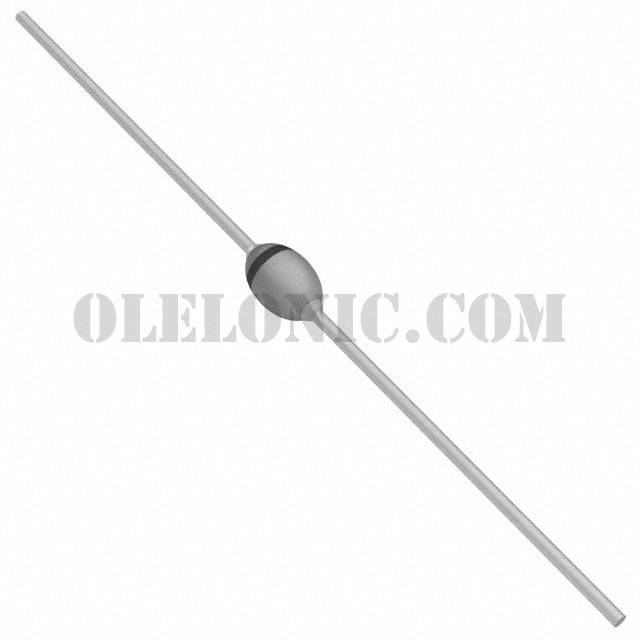

Package / Case	Axial
Supplier Device Package	Axial
Operating Temperature - Junction	-
