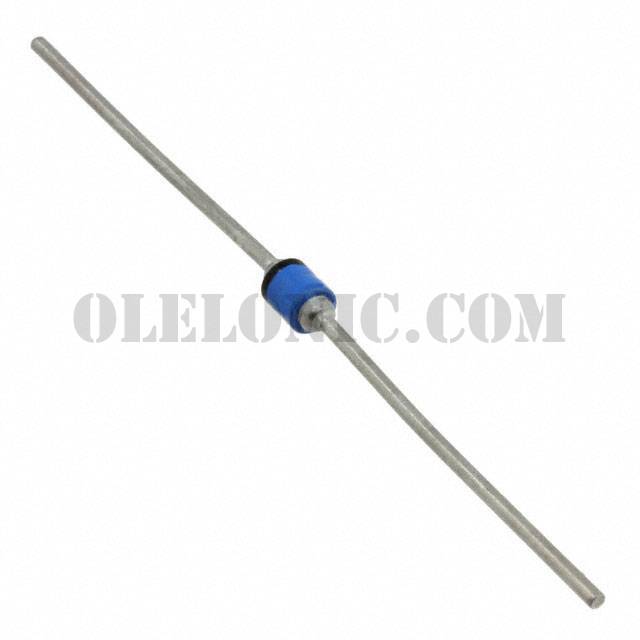

1N5550


1N5550

Part Number1N5550

Manufacturer

Description

Datasheet

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1N5550 - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.2V @ 9A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)2µs
Current - Reverse Leakage @ Vr1µA @ 200V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseB, Axial
Supplier Device Package-
Operating Temperature - Junction-65°C ~ 175°C
