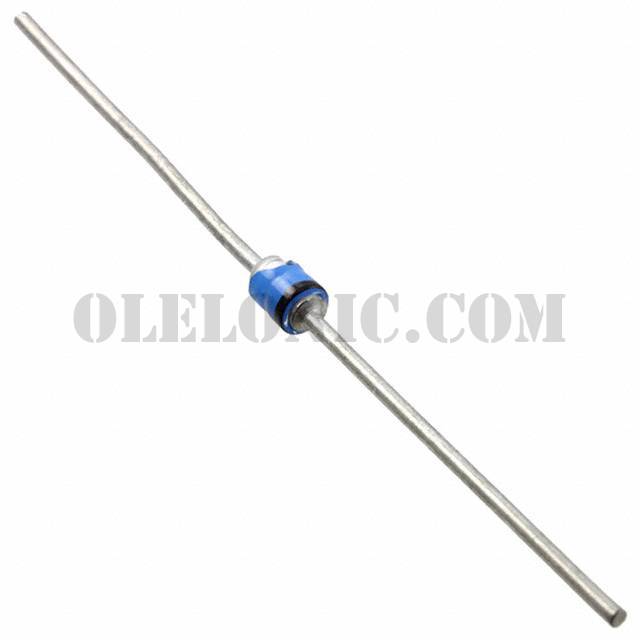

1N5416

1N5416

Part Number1N5416

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 100V 3A AXIAL

Datasheet1N5415 - 20

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 3A Through Hole

To learn about the specification of 1N5416, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5416 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5416.
We are offering 1N5416 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5416 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5415 - 20
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 9A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	1µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	B, Axial
Supplier Device Package	-
Operating Temperature - Junction	-65°C ~ 175°C
