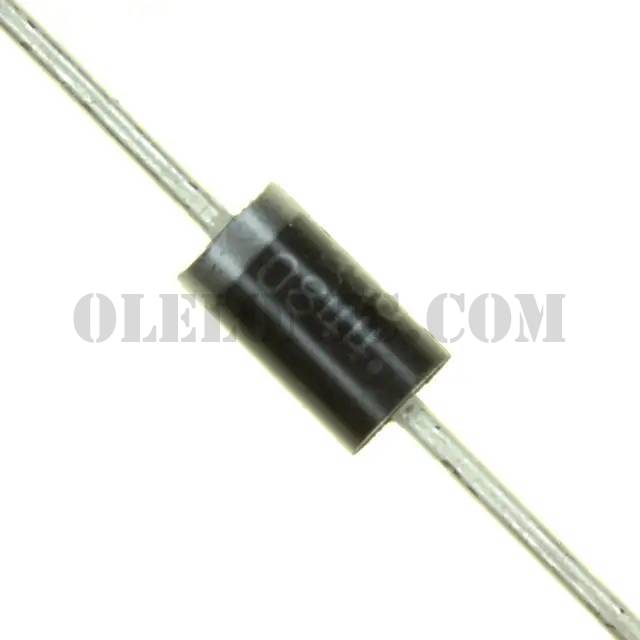

1N5406RLG

1N5406RLG

Part Number1N5406RLG

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 600V 3A DO201AD

Datasheet1N5400-5408

Package / CaseDO-201AA, DO-27, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 3A Through Hole DO-201AD

To learn about the specification of 1N5406RLG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5406RLG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5406RLG.
We are offering 1N5406RLG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5406RLG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5400-5408
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	DO-201AD
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	1N5406
