Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5400-1N5408
Standard Package	1000
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 200V
Capacitance @ Vr, F	30pF @ 4V, 1MHz
Mounting Type	Through Hole

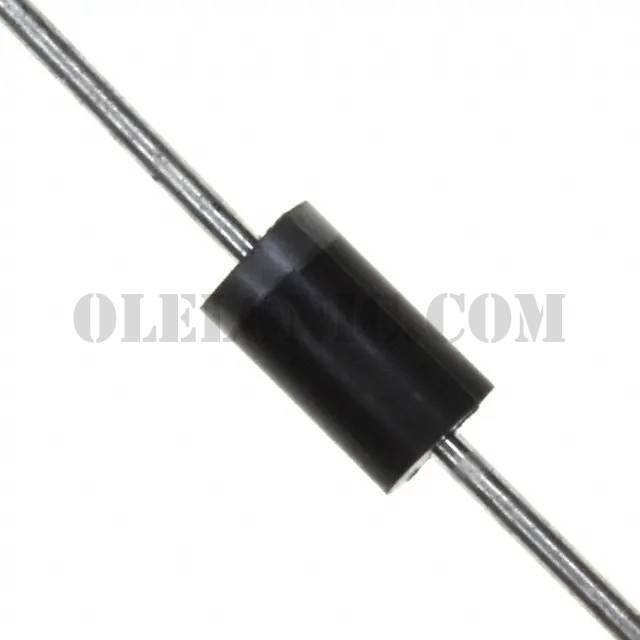

Package / Case	DO-201AD, Axial
Supplier Device Package	DO-201AD
Operating Temperature - Junction	-50°C ~ 150°C
Base Part Number	1N5402
