Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4448W
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	250mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	25nA @ 20V
Capacitance @ Vr, F	4pF @ 0V, 1MHz
Mounting Type	Surface Mount

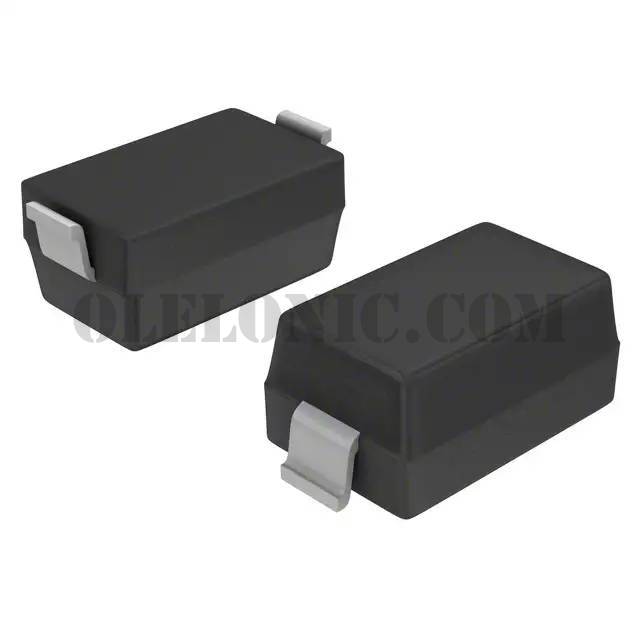

Package / Case	SOD-123
Supplier Device Package	SOD-123
Operating Temperature - Junction	-65°C ~ 150°C
