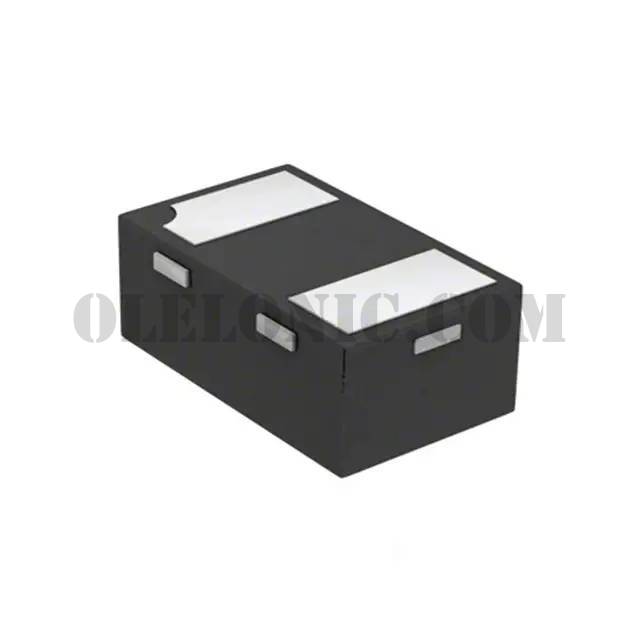

1N4448HLP-7


1N4448HLP-7

Part Number1N4448HLP-7

Manufacturer

Description

Datasheet

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1N4448HLP-7 - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package3000
ManufacturerDiodes Incorporated
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80V
Current - Average Rectified (Io)125mA
Voltage - Forward (Vf) (Max) @ If1V @ 100mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr100nA @ 80V
Capacitance @ Vr, F3pF @ 0.5V, 1MHz
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device PackageX1-DFN1006-2
Operating Temperature - Junction-65°C ~ 150°C
Base Part Number1N4448H
