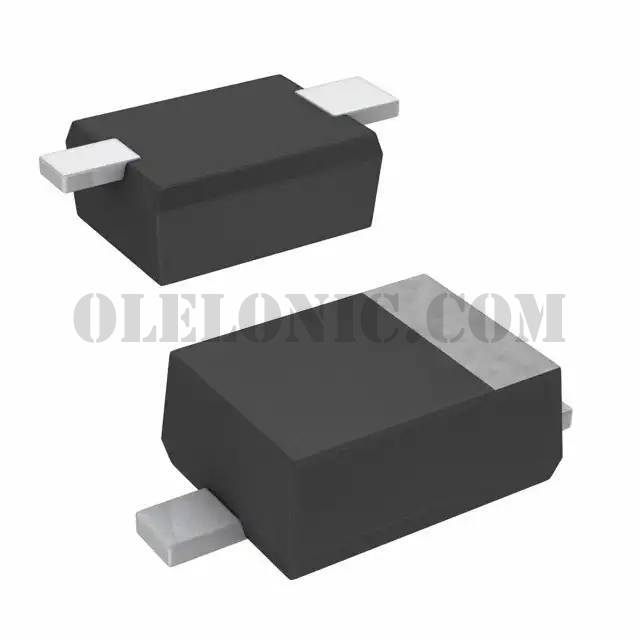

1N4148WSTR

1N4148WSTR

Part Number1N4148WSTR

ManufacturerSMC Diode Solutions

DescriptionDIODE GEN PURP 75V 300MA SOD323

Datasheet1N4148WS

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 75V 300mA (DC) Surface Mount SOD-323

To learn about the specification of 1N4148WSTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N4148WSTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N4148WSTR.
We are offering 1N4148WSTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N4148WSTR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4148WS
Standard Package	3000
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	300mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	2.5µA @ 75V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323
Operating Temperature - Junction	-65°C ~ 100°C
