1N4148WL2-TP


1N4148WL2-TP

Part Number1N4148WL2-TP

Manufacturer

Description

Datasheet

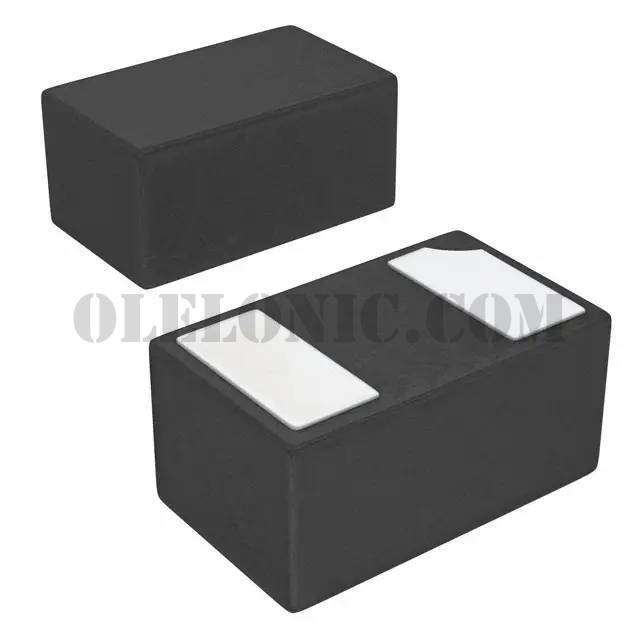

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1N4148WL2-TP - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerMicro Commercial Co
Series*
PackagingCut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100V
Current - Average Rectified (Io)150mA
Voltage - Forward (Vf) (Max) @ If1.25V @ 100mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr5µA @ 75V
Capacitance @ Vr, F1.5pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device PackageDFN1006-2
Operating Temperature - Junction-65°C ~ 150°C
